DC1, 5 String: Available - SOLD

Jason picked this one up and decided to put a nice spalted maple top on it!

Here are the specs:

Neck:
  • 5 Piece neck through. Center of padauk, two purpleheart strings, then teak
  • Ebony, 24 fret, 34" scale
  • Thin maple accent layer
  • Walnut headstock (to match the body)


    • Body:
  • Walnut body wings and back
  • Darker spalted figured maple top set
  • Thin maple accent layer
  • Neck laminations to show through


    • Hardware and Electronics:
  • Hipshot ultralight tuners and "A" style bridge, black
  • Two Bartolini P4 Pickups with Aguilar OBP-3 preamp

    • Status and Updates

    24 June 2004 - Neck blank is done, here are a few pics of the woods to see how they will go together.

    (click on image to view larger version)

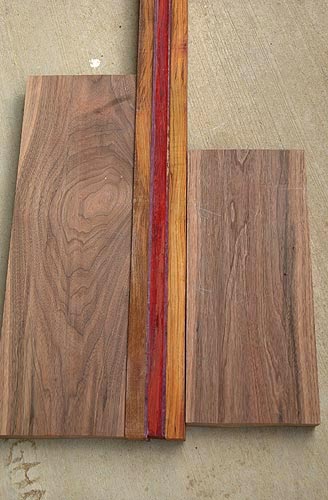

    Neck blank with body wings
    Neck blank next to body wings to see how they will look together    		 Neck blank closeup

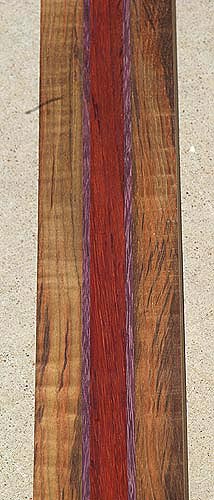

    Close up of the neck blank, showing some flame figuring in the teak    		 dark spalt maple set 2

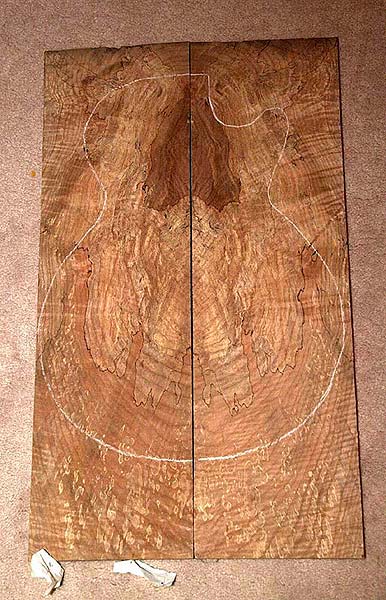

    The dark splated maple top set




    08 November - The body wing laminations are done, ready to carve neck.

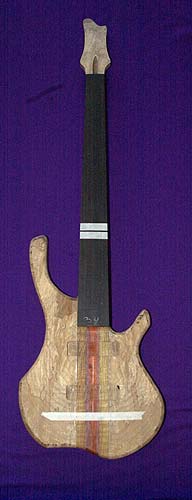

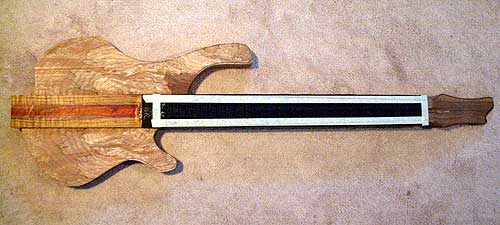

    Full view
         		 Body close up

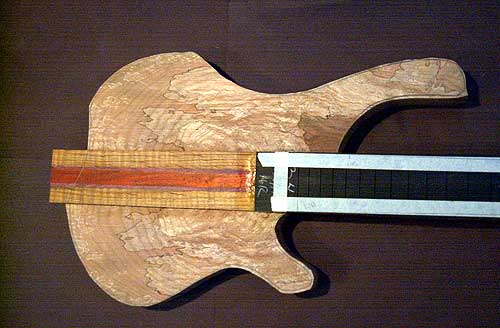

    Close up of body to get idea of how it will all go together

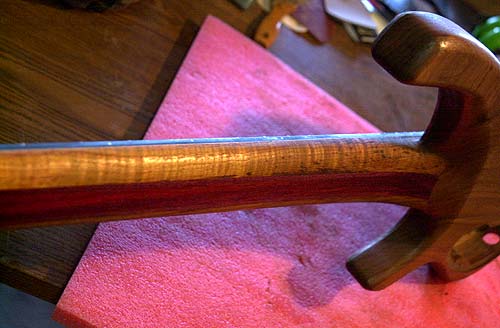

    22 November - Body wings are shaped and on, neck taper and profile are roughed in.

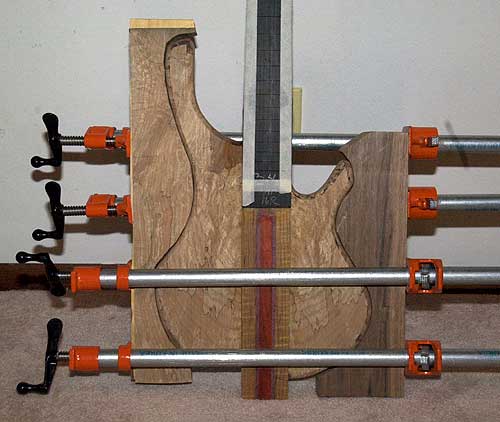

    body wings glued and clamped
    body wings glued and clamped

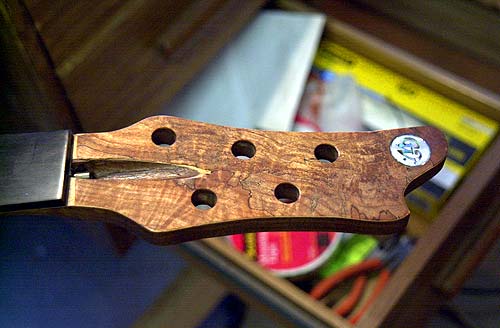

    02 January - All routing done, just a few more details and then the finish goes on

    All routing done, front view
    All routing done, front view    		 Rear view

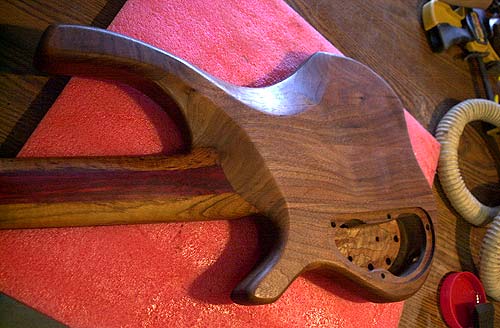

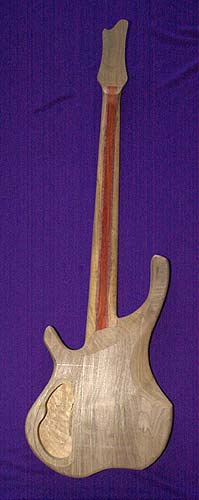

    Rear view

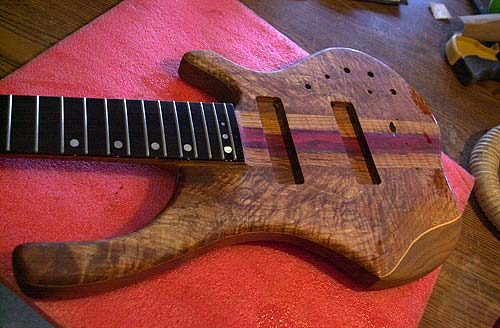

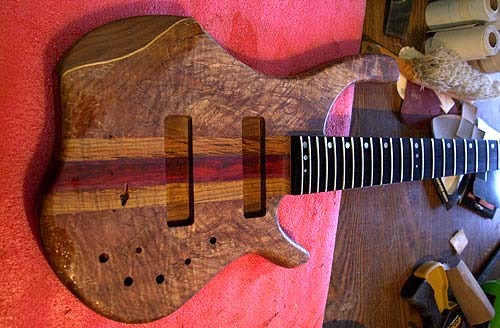

    11 February - Starting the final finish









    22 February - It's done and on the UPS Truck



















    *Hint* - I have one more dark spalted maple top set like this one available!
